External Solar LED Safety

Usage Guide:

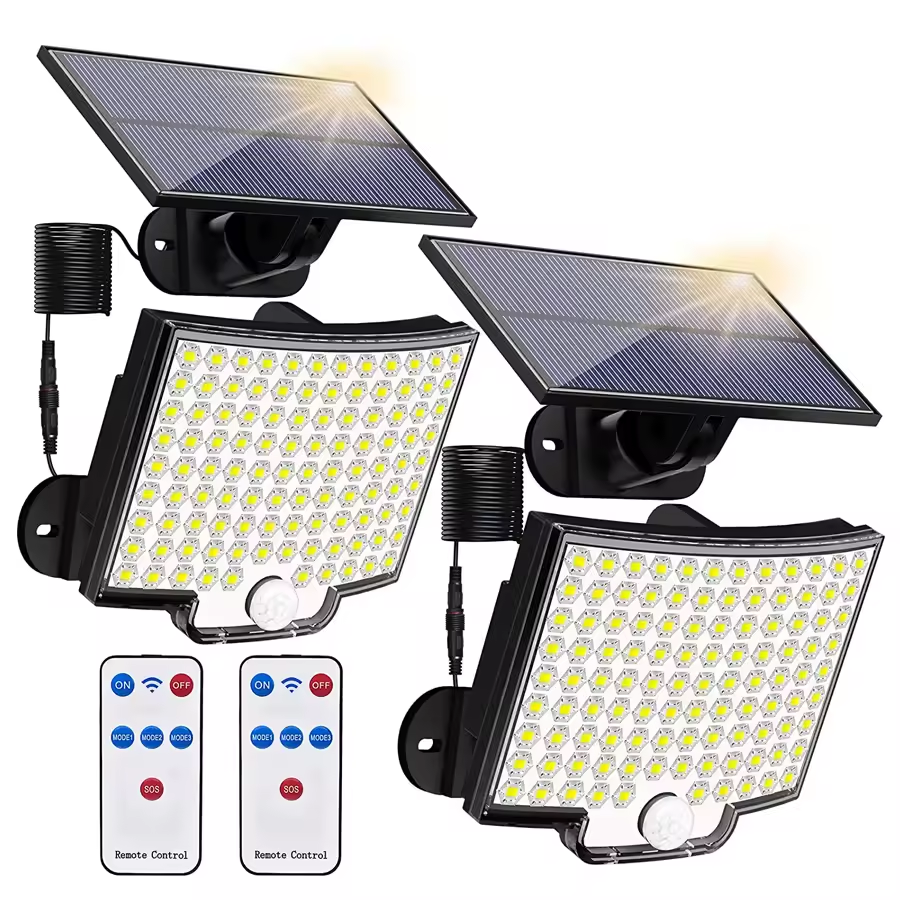

106-LED Solar-Powered Light

These automatic dusk-to-dawn solar lights charge during daylight hours and provide illumination after sunset. Featuring a responsive 120° motion detector with a range of up to 26 feet, they’re perfect for lighting pathways, entryways, and outdoor spaces without the need for manual operation.

Weather-Resistant Construction

Designed with IP65-rated waterproof protection, these outdoor solar lights feature durable construction with sealed wiring connections. They maintain reliable performance in various weather conditions, from heavy rain to extreme temperatures.

Versatile Installation Options

The solar panel can be positioned separately from the light unit, connected by a 16-foot waterproof cable for optimal sunlight exposure. Alternatively, both components can be installed together for convenience.

Multiple Lighting Modes

1. Automatic nighttime activation with motion sensor deactivation
2. Bright 20-second illumination when motion is detected, followed by dimmed lighting
3. 20-second bright light triggered by motion, then complete shutoff
4. Emergency SOS mode

Technical Specifications

Solar Panel: Polycrystalline silicon
Operating Voltage: 5.5V
Power Output: 1.5W

Battery: 18650 lithium-ion
Capacity: 1800mAh
Voltage: 3.7V
Internal Resistance: <60mΩ

LED Type: 2835/0.2W
LED Count: 106 units
Coverage Area: 30 sq. ft.
Illumination Range: 26-33 ft
Beam Angle: 180°
Operating Temperature: -4°F to 140°F
Motion Detection Range: 20-26 ft
Detection Angle: 120°

228-LED Solar Lighting Solution

Key Features

Dual-Purpose Lighting: The 228-LED system consists of separate solar panel and light units connected by a 16-foot cable, suitable for both indoor and outdoor applications.

Enhanced Performance: The high-efficiency solar panel converts 21% of sunlight into energy, while the 2200mAh battery provides 6-10 hours of illumination. Note: Actual performance varies with sunlight intensity.

Lighting Mode Options

Security Mode: Activates at full brightness when motion is detected at night, then turns off after 15 seconds.

Dimmed Sensor Mode: Maintains 30% brightness at night, increasing to full power when motion is detected before returning to dimmed state.

Nightlight Mode: Provides continuous 30% brightness throughout the night.

Product Specifications

Light Source: LED

Housing Material: Durable Plastic

LED Count: 318 units

Notable Characteristics

Independent Solar Panel: Unlike traditional solar lights, the photovoltaic panel can be positioned separately using the included 16-foot waterproof cable for optimal sun exposure and efficient charging.

Superior Illumination: With 318 LEDs and a 120° illumination angle, these lights provide extensive coverage and bright lighting for large areas, enhancing nighttime safety and visibility.

Advanced Detection System: Combines light and motion sensors, with an improved motion detector that activates at distances of 10-16 feet.

Weatherproof Design: Constructed from high-quality ABS material with IP65 certification, ensuring protection against water and dust while maintaining brightness in outdoor conditions.

Simple Installation: Includes all necessary mounting hardware for wall installation without external power requirements. Recommended mounting height is 6-8 feet.

328-LED Model Specifications

Light Source: LED

Housing Material: Durable Plastic

LED Count: 328 units

348-LED Model Specifications

Light Source: LED

Housing Material: Durable Plastic

LED Count: 348 units
